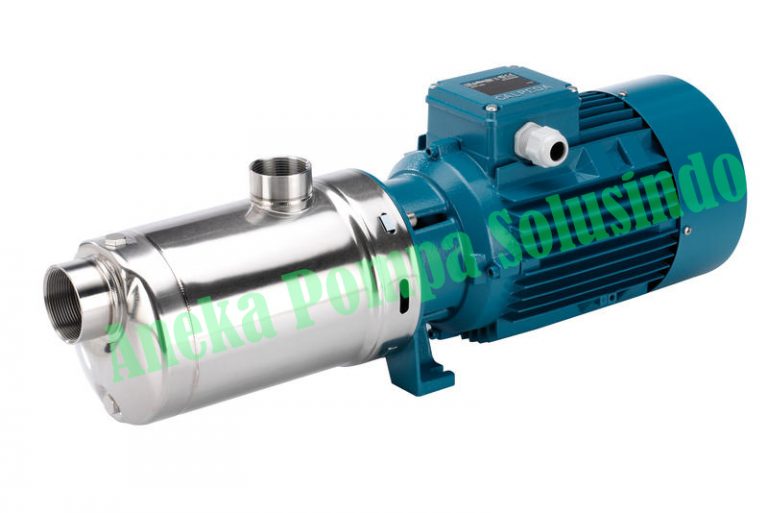

MXH - Horizontal Multi - Stage Coupled Pumps

Horizontal multi-stage close coupled pumps in chrome-nickel stainless steel. Compact and robust construction, without protruding flange and with single-piece lantern bracket and base. Single-piece barrel casing, with front suction port above pumps axis and radial delivery at top. Universal pump, for domestic use, for civil and industrial applications, for garden use and irrigation.

Specification of pumps :
– Casing : Chrome nickel steel (AISI 304)
– Impeller : Chrome nickel steel (AISI 304)
– Shaft : Chrome nickel steel (AISI 303)

Applications
– Clean water transfer
– Garden area
– Booster pump
– Washing, and many more

Operating conditions
– Liquid temperature from – 15 °C to + 110 °C.
– Ambient temperature up to 40 °C.
– Maximum permissible pressure in the pump casing: 8 bar. Continuous duty.

Untuk informasi dan pemesanan, silakan menghubungi Whatsapp

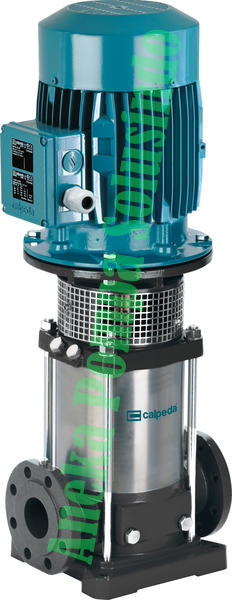

MXV - Vertical Multistage In-Line Pump

Vertical multi-stage pumps with suction and delivery connections of the same diameter and arranged along the same axis (in-line). A universal pump for civil and industrial use, for pressure-boosting systems, fire-extinguishing systems, high-pressure washing plants, irrigation, agricultural uses and sport installations.

Specification of pumps :
– Casing : AISI 304 (MXV 25, 32, 40, 50)
Cast iron (MXV 65, 80, 100)
– Impeller : AISI 304
– Shaft : AISI 303

Applications
– Clean water transfer
– Garden area
– Booster pump
– Washing
– Fire fighting systems, and many more

Operating conditions
– Liquid temperature from – 15 °C to + 110 °C.
– Ambient temperature up to 40 °C.
– Maximum permissible pressure in the pump casing: 25 bar. (16 bar for pumps with oval flanges).

Untuk informasi dan pemesanan, silakan menghubungi Whatsapp
