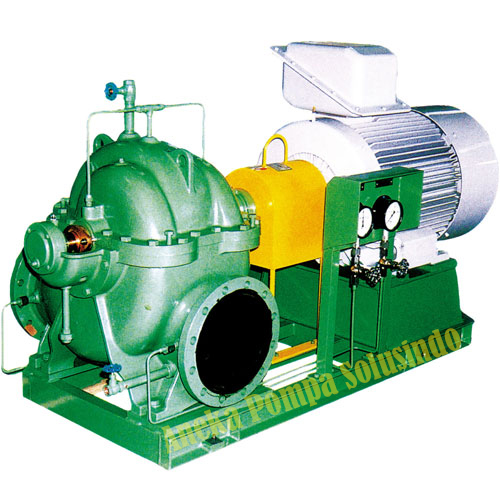

CDM - Double Suction Pump Horizontal Split Case Pump

Torishima diuble suction volute pump CDM is newly designed with the most advanced hydraulic, providing less noise and vibration, wider operation range, lower NPSH required and higher efficiency. Horizontally Split Volume Casing Designed in accordance with Finite Element Method Construction Analysis. Easily Maintenanced Grease Lubricate Ball Bearing as Standard


STANDARD MATERIAL PUMP

Volute Casing : Cast Iron, Ductile Iron, Stainless Steel
Impeller : Cast Iron, Bronze, Stainless Steel
Shaft : Carbon Steel, Chrome-MolybdenumSteel, Stainless Steel
Shaft Sleeve : Bronze, Stainless Steel


APPLICATIONS
– Water intake
– Distribution boosting
– Circulating
– Water supply
– Fire fighting system, and many more

Untuk informasi dan pemesanan, silakan menghubungi Whatsapp

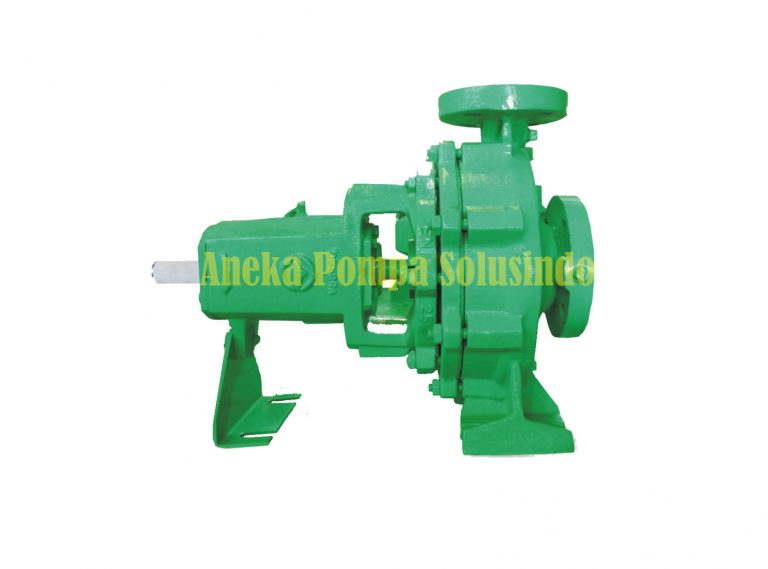

CEN - Centrifugal End Suction Pump

End suction volute pumps with vertical centerline discharge. Back Pull Out (BPO) design allows the removal all rotating elements without disturbing the casing, piping or motor. The application :
• General water supply, irrigation and drainage
• Pumping of sea water, brine, alkali and condensate
• Circulating hot and cold water supply
• Sprinkling & fire fighting system
• Swimming Pool

Material of pump :
– Casing : Cast iron (option : Ductile, Bronze)
– Impeller : Cast iron (Ductile, Bronze)
– Shaft : Stainless steel 420 (option : SS 316/ SS 304)
– Shaft seal type : Gland Packing (option : mechanical seal)

Untuk informasi dan pemesanan, silakan menghubungi Whatsapp

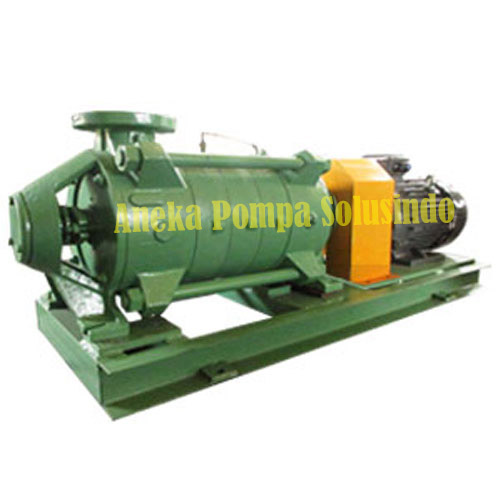

MMO - Horizontal Multistage Ring Section Pump

Torishima MMO is high pressure centrifugal pumps are pumps of ring section type. They are suitable for clean media free from abrasive and solid particles anf not liable to attack the pump mechanically (abrasion) or chemically (corrosion).
MMO pumps can also be used circulating pumps in high pressure systems because even the suction casing is designed for 40 bar.

STANDARD MATERIAL PUMP

Suction Casing, Stage Casing : Cast Iron, Bronze
Discharge Casing : Cast Iron, Bronze, Carbon Steel, Ductile Cast Iron
Impeller : Cast Iron, Bronze
Shaft : Carbon Steel, Stainless Steel
Shaft Procteting Sleeve : Stainless Steel


APPLICATIONS
– Pressure boosting
– Sprinkling
– Circulate cooling water and hotwater
– Water supply
– Fire fighting system, and many more

Untuk informasi dan pemesanan, silakan menghubungi Whatsapp
